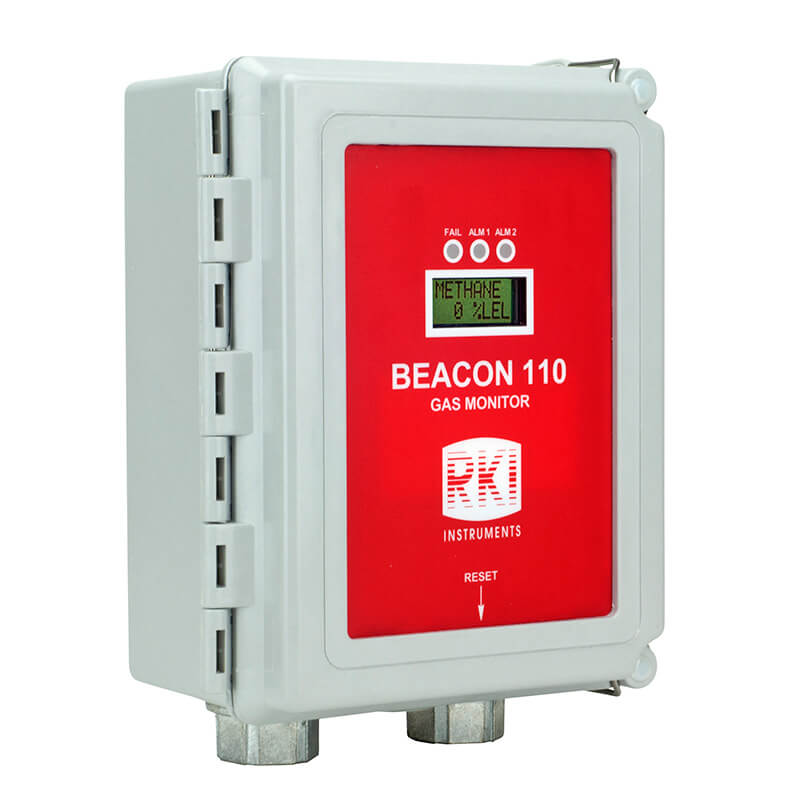

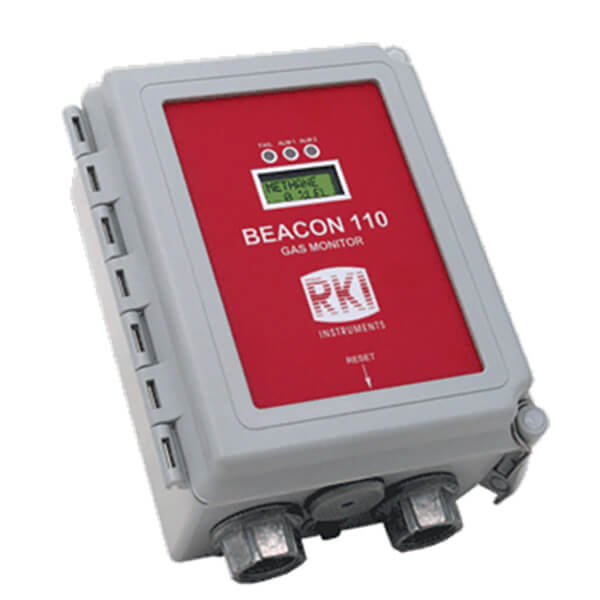

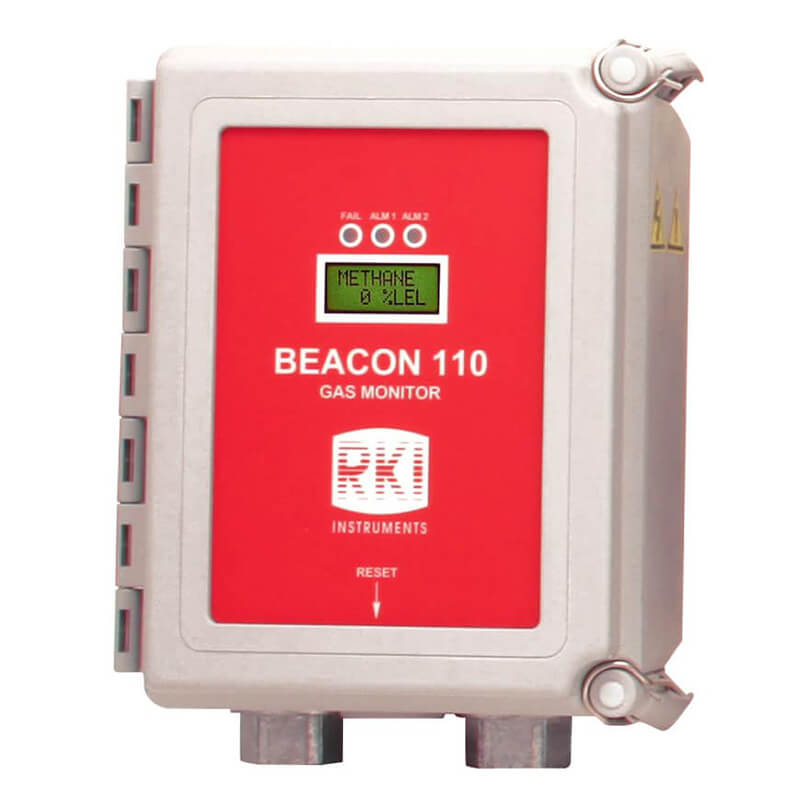

RKI Beacon 110 Single Channel Wall Mount Fixed Systems Controller

The RKI Beacon 110 Single Channel Wall Mount Controller is a controller for a single, fixed system of gas detection. This plug-and-play gas detection control unit is simple to install and operate. Mount the Direct Connect, S2, or M2 sensor wherever your particular gas would likely be present or mount them directly to the Beacon 110 Controller box. This versatile, low cost gas indicator solution works with any 4-20 mA transmitter (2 or 3 wire, 24 VDC). The audible alarm has two programmable alarm levels. A built-in trouble alarm with relay allows ventilation or automatic emergency dialing to be installed in coordination with the control box. Fixed systems such as the Beacon 110 are used for perimeter monitoring, with detection heads typically mounted and wired around the unit process area.

The Beacon 110 is also housed in a NEMA 4X rated case for a weather tight seal. This case design complies with lock out / tag out standards and can be fully secured. An external reset switch allows the alarm to be silenced from outside of the controller housing. The Beacon 110 ships complete with a wall mounting kit for easy installation.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment pants, Pulp & paper mills, Gas, telephone, & electric utilities, Parking garages, Manufacturing facilities, Steel, Automotive, HVAC

Key Features:

• Low-cost monitoring solution
• Comes with wall mounting kit
• Does NOT come with sensors
• For indoor or outdoor use
• 115/220 VAC (Please call Customer Service at 800-829-9580 for 24 VDC power option)
• Long life sensors
• Accepts RKI LEL/O2/H2S/CO direct connect sensors
• Accepts any 4-20 mA transmitter
• Audible alarm with reset button
• Two programmable alarm levels
• Built-in trouble alarm with relay
• Relay rating 10 amps, form C
• Provides 4-20 mA output

ORDERING INFORMATION: When ordering a Beacon 110 system, please specify the following components:

1. Controller - Be sure to order correct –01, -02, or –03 version if intended to be used with a standby battery or if a strobe light is needed.
2. Detector Assembly (one only):
   • Direct Connect
   • S2 Series Sensor
   • M2A-XL Series
   • T2A Series
   • T3A Series
   • VOC Pro
   • Air Alert
   • SD-1
   • M-Series
   • 35-3001
   • 35-3010
   • GD-70D
   • GD-K88Ai
   • Direct Connect sensors for LEL combustibles, Oxygen, Hydrogen Sulfide, and Carbon Monoxide as well as a few other gases. The Beacon 110 can also accept any 4-20 mA transmitter.

     Note:

     • Fixed system pricing is for equipment only and does not include factory start-up or training. Please contact Customer Service at 800-829-9580 for quotation if factory start-up or training is needed.
     • Please contact Customer Service at 800-829-9580 if you would like assistance with pricing or configuring a system quotation.
     • A calibration test kit is a strongly recommended accessory for all fixed systems.

   Specification Sheet:

   Manual:

   Part Numbers:
   72-2110RK - single channel controller (no sensor)
   72-2110RK-01 - single channel controller with battery charger (no sensor or back-up battery)
   72-2110RK-02 - single channel controller with small red strobe light (no sensor)
   72-2110RK-03 - single channel controller with battery charger and small red strobe light (no sensor or back-up battery)
   72-2110RK-05 - single channel controller with horn and small red strobe light (no sensor)
   72-2110RK-07 - single channel controller with battery charger, horn, and small red strobe light (no sensor)
