BW IntelliDoX Docking Station DX-CLIP
Description
The BW DX-CLIP IntelliDoX is an instrument management system for the BW Clip series of single-gas detectors.
Place the BW Clip in the docking module, and it automatically tests the gas detector and sensors while transferring data to the docking station. With IntelliDoX, you can configure the alarm setpoints and other parameters based on your changing requirements throughout the life of the detector.
IntelliDoX DX-CLIP Features:
- Industry-leading FastBump test (10 seconds) that eliminates bottlenecks, while avoiding costly purge cycles that waste gas
- Compatible with the single-gas BW Clip gas monitors
- Gangable up to five modules, each with its own LCD screen and keypad for independent operation
- Portable
- Easy to set up with no tools required — takes just two minutes and an Ethernet cable or a USB drive
- Easy to connect via Ethernet to a network

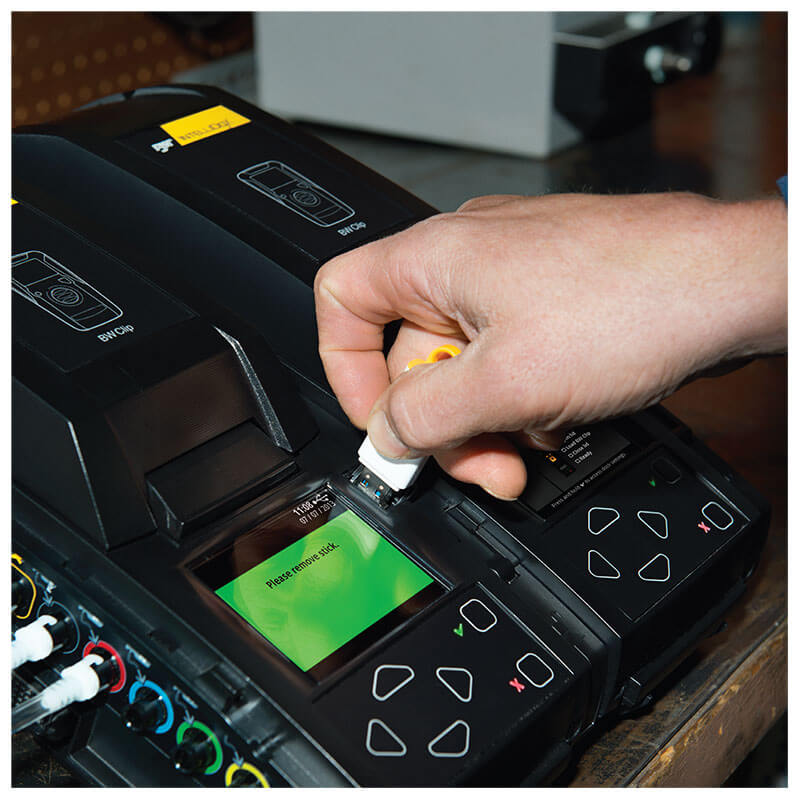

- USB port to easily configure dock module settings or retrieve data without network access
- Enables configuration of BW Clip alarm setpoints and other parameters throughout the gas detector operation life
- Bump testing, configuration, and record-keeping support for the BW Clip
- Configure alarm setpoints, track compliance of workers, and more
Quicker bump tests for better productivity: Bump as many as five BW Clip detectors with a single IntelliDoX module in less than a minute using FastBump. No more bottlenecks from workers lining up to bump test their detectors.
Flexible configuration to meet changing needs: Configure the high and low alarm setpoints plus other detector parameters throughout the BW Clip lifespan.
Efficient networking and data transfer for easy record-keeping: Use either USB or Ethernet to transfer bump tests, peak exposures, and other gas-detection data.
Please Note: The BW IntelliDoX Enabler Kit DX-ENBL-NA is required to operate the IntelliDoX Docking Station.
Specifications:
- Weight: 4.2 lbs
- Power Supply: 12 V / 8.33 A ITE Power Supply
- User update-able settings: Configure Alarm Settings, Display gas reading during alarm, Enable non-compliance indicator, Hibernate detector, Schedule bump reminders, Transfer event logs, Time display preference, and Update firmware
- Communication Method: Two-way infrared communication between docking module and detector
- Data Storage: 2 GB internal
- Warranty: 2 years
Part Numbers:
DX-CLIP — BW IntelliDoX Docking Station
PK Safety services BW Technologies by Honeywell gas monitors in-house with factory-trained technicians. For help selecting the right part or to schedule calibration and repair, call 800.829.9580 or contact us online.
Optional Accessories:
DX-ENBL-NA — IntelliDoX Enabler Kit
Calibration Gas Demand Flow Regulator
H2S Calibration Gas 34 liters CG2-H-25-34
Related Searches
Bw Technologies By Honeywell, Gas Detection Docking Stations
Frequently Asked Questions
Which BW gas monitors work with the IntelliDoX DX-CLIP?
The DX-CLIP IntelliDoX is designed specifically for the BW Clip single-gas monitor series, including the BWC2-M (CO), BWC2-X (O2), BWC2-H (H2S), BWC2-H510, BWC2-H515, BWC3-M, and BWC3-H. For 4-gas monitors, see the DX-MCLP.
How fast is the FastBump test on the IntelliDoX DX-CLIP?
The IntelliDoX DX-CLIP performs a FastBump test in approximately 10 seconds per detector — with no purge cycle, eliminating wasted calibration gas. A single module can bump up to five BW Clip detectors simultaneously. This dramatically reduces pre-shift preparation time for large crews compared to manual bump testing.
Is the IntelliDoX Enabler Kit required to operate the DX-CLIP?
Yes. The BW IntelliDoX Enabler Kit DX-ENBL-NA is required. It includes the power supply, AC power cord, ethernet cable, inlet filter assembly, calibration gas tubing, purge gas tubing, exhaust tubing, quick connect fittings, and the IntelliDoX inlet end plate. The docking station module (DX-CLIP) and the Enabler Kit must be ordered separately.
Can the DX-CLIP be expanded to manage larger fleets?
Yes. Up to five DX-CLIP modules can be ganged together, each operating independently with its own LCD screen and keypad, while sharing power, calibration gas, and network connection. This allows a single setup to bump test and manage up to 25 BW Clip detectors simultaneously.
How does the IntelliDoX DX-CLIP connect to my compliance management system?
The DX-CLIP connects to a network via Ethernet for automated data transfer to Honeywell Safety Suite software. For sites without network access, data can be retrieved via USB drive. Transferred data includes bump test results, peak gas exposures, alarm event logs, and worker compliance records.
Can I use the DX-CLIP to configure BW Clip alarm setpoints?
Yes. The IntelliDoX DX-CLIP allows full configuration of BW Clip alarm setpoints (high and low), enabling or disabling the noncompliance indicator, setting bump test reminder schedules, display preferences, and other parameters — all without deactivating the detector. Settings can be adjusted throughout the detector's lifespan. Call PK Safety at 800.829.9580 for fleet setup assistance.
